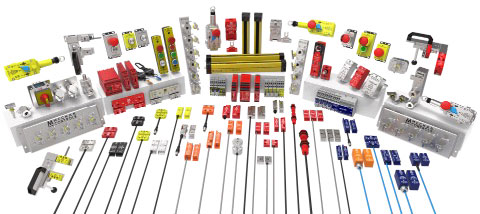

HE coded magnetic safety switches from Mechan Controls

With magnetically coded operation and solid-state technology, the HE Series is perfect for high-vibration, wet, dusty and demanding machine guarding applications.

• Magnetically coded for tamper resistance
• IP67 and IP69K sealed for washdown and dusty areas
• Tolerant to shock and vibration - no moving parts
• Misalignment-tolerant - easy to install and maintain
• Dual gate option (HED and HE2-D) - monitor 2 guards with 1 switch
• LED diagnostics - quickly identify system status
• Cost-effective and fast delivery times

The HE Series safety switches are perfect for:

• Food and beverage lines
• Dairy and pharmaceutical plants
• Packaging and filling systems
• Can forming (aluminium / steel / plastic)
• Clean room environments
• Any machine exposed to vibration or impact

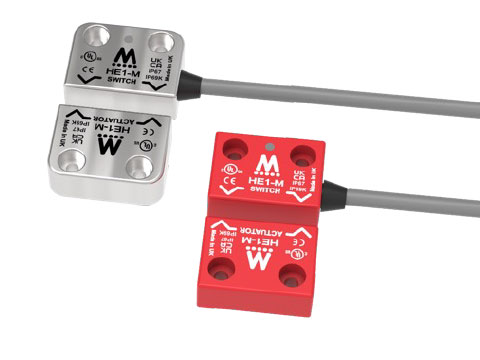

The HE1-M is Mechan's smallest safety switch. Constructed in ABS or 316 stainless steel, this miniature switch has the same performance as any HE-range of switch. You benefit from easier installation, a small housing, LED indication, and a 316 stainless steel option for wet and dusty harsh environments.

Check out the key features and options of the HE Series:

• ABS, 316 stainless steel and hygienic
• Wide range of sizes and cable lengths
• Adheres to ISO EN 14119, IP67 and IP69K tested, CAT4, PL-e, SIL3
• Shock and vibration proof
• Tolerant to misalignment
• Designed and manufactured in the UK
• Fast delivery times
