There are many ways of driving hydraulic pumps and jbj Techniques is here to help

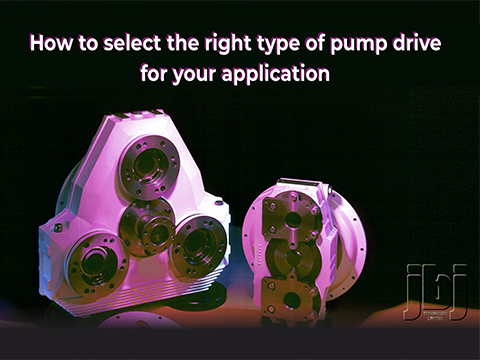

Splitter gearboxes can bring advantages to a hydraulic drive system where the use of a single pump with multiple stages would not be appropriate or practical, for instance machinery with many different hydraulic circuits and demands such as drilling rigs, screeners, mobile rock crushers, fishing boats, etc.

The selection of a suitable splitter gearbox and its associated system design may seem to be a daunting task, here we cover basic and advanced requirements, design needs and additional considerations. No two drive systems are the same and as always a discussion will solve many problems - jbj Techniques is happy to talk about your project with you from preliminary ideas to detail design.

Six basic considerations for selecting a pump drive:

When designing a new hydraulic system for your project there are basic requirements for the selection of a suitable splitter gearbox, here is a quick overview of each one.

1) POWER, the rate of transfer of energy. The first consideration must be the hydraulic needs of the machine you are designing, the required maximum flow rate and pressure for each hydraulic circuit, (will all circuits be operating at the same time, differing loads etc), with this information you will be able to determine the number of gearbox output points, shaft power demand for each hydraulic pump and therefore the total required system power then, considering efficiencies you will be able to define the total power requirement for your prime mover. Typically, this will be a diesel engine for most mobile applications however electric motors can be used, we will be happy to discuss the system at this stage and advise on power calculations.

2) PRIME MOVER, a machine that converts potential energy into mechanical energy. With the prime mover power defined, a suitable engine or motor can be investigated with consideration given to the required speed. Splitter gearboxes can be supplied with speed reducing or speed increasing ratios so pump speed can be fine-tuned to an ideal input speed. With this information to hand you will be able to decide on your preferred engine or motor and relevant dimensions such as flywheel and flywheel housing sizes or motor frame size, flange and shaft, etc, the chosen supplier will be able to advise details and provide drawings, CAD files, spec sheets etc.

3) HYDRAULIC PUMPS, devices converting mechanical energy into flow of oil and pressure. Decide on the make and model codes of the hydraulic pumps you intend to use noting that a splitter gearbox will reverse the direction of rotation to the pump drive shafts, (for splitter gearbox drives, spline pump shafts are preferable), also the required pump driving speed if different to the prime mover selected. With all this information to hand, the torque demand for each pump can be calculated, the total for the gearbox and drive coupling determined so that gearbox options can be considered.

4) SERVICE FACTOR, multiplier used for defining expected gear or bearing life. Selection of a suitable splitter gearbox will typically begin with the maximum torque that will be applied under the harshest operational conditions multiplied by a suitable service factor. The value of this factor is defined based on the type of application, expected run time, required operational life, importance of the of the equipment, number of engine cylinders and application specific conditions. The application of a service factor effectively over sizes the gearbox in order for it to operate for a healthy number of hours. Service factors may also be referred to as life factors.

5) DIMENSIONS, fundamental quantities used to define physical details. It is important to check the physical size of the proposed gearbox with particular attention being paid to the position of the pump drive locations. This is to make sure it will be possible to fit the chosen pumps with suitable clearances, to be able to connect the hydraulic pipes, hoses and any associated control components that may be required. Pumps with rearward facing ports can be useful. jbj Techniques can help here by examining the details using 3D CAD.

6) COOLING, the transfer of thermal energy from a hot object to a cooler one. The power and speed transmitted by drive systems has a direct relationship to drive torque, or to put it another way the physical strength of the drive. Another power figure relative to drive system selection relates to thermal capacity. This value defines the ability of the drive to dissipate heat by radiation from its various surfaces. During operation, heat is generated by the action of friction between the surfaces of bearings and gears. This heat is absorbed by the oil in the gearbox and transferred to the external surfaces. The amount of heat the surfaces can dissipate is expressed as a power figure, often lower than the power figure used to calculate gearbox torque capability.

Providing the surfaces are able to fully dissipate this heat all will be well. However, in some instances the thermal input power may be greater with the undesirable effect of the gearbox oil over-heating. Fortunately, the oil can be used to remove the excess heat that the gearbox surface cannot, by pumping it out of the gearbox and passing it through a heat exchanger, with the option of passing it through a filter before returning it to the gearbox.

With these details already provided, jbj Techniques will be able to advise a suitable oil flow rate and dissipation value. With some additional information on the cooling medium, usually air or water, temperature flow rates, etc. the company will be able to specify a suitable heat exchanger from its product range.

Contact jbj Techniques for friendly, professional assistance when selecting the right pump drive for your application. Exceptional mechanical and fluid power expertise.
